- Included Analog Gauges: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, and Fuel Level.
- Silver Alloy gauge-face styling. Each HDX system allows the user to select their favorite illumination color for the gauge readings and needles, as well as the TFT message center displays.
- Various Indicators can be displayed in the Digital Message Centers: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Odometer, Clock, Trip Meter...
- Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.

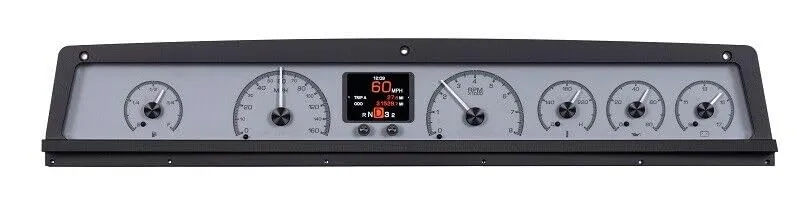

- Designed as a drop-in replacement for 1971-76 Chevy Impala and Caprice, required sending units are included for a painless installation. The illumination colors are user-adjustable to match any paint scheme. A large TFT message center allows full customization of auxiliary readings, keeping the driver in tune with under hood happenings. Bezel shown in any pic is not included, fits into stock bezel.
Shut down the block with this one! Designed as a drop-in replacement for 1971-76 Chevy Impala and Caprice, required sending units are included for a painless installation. The illumination colors are user-adjustable to match any paint scheme.
A large TFT message center allows full customization of auxiliary readings, keeping the driver in tune with under hood happenings (bezel is NOT included)
* Bezel shown in any pics is NOT included. Shown installed for illustrative purposes only.
Each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With the central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.
- Is Discontinued By Manufacturer : No
- Package Dimensions : 28 x 14 x 7 inches; 4.41 Pounds
- Date First Available : October 12, 2017
- Manufacturer : Dakota Digital
- Country of Origin : USA
